Alarm and Data Logging

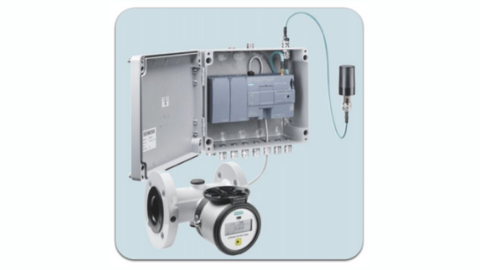

Alarm & Data Logging Systems enable the reliable monitoring of the most remote measuring points. Their optimized energy consumption obviates an external power source: They supply themselves from either a battery or an accumulator with a solar panel. This makes them ideal for use in remote locations with harsh climatic conditions.

Can be used, for example, for detecting leaks, monitoring pumping stations and water tanks, remote inventory control, monitoring liquid levels in tanks and silos, or monitoring agricultural irrigation systems. Even level monitoring of standing and flowing water bodies and also flood protection are possible.

Our system records measured values from connected sensors and transmits them via a wireless network to the control center by an Open VPN tunnel or a secure e-mail. If the measured values drop below or exceed a defined value, the RTU reports it immediately as a text message or an e-mail alert.

single-img-sixteen
single-img-sixteen
Features
  • Power Supply: Freely combinable
    • 12- 24 V DC
    • 2 x 3 redundant battery modules
    • Accumulator with solar panel
  • Communication connection with integrated UMTS modem or external router.
  • Simple connection to SINEMA Remote Connect with auto configuration.
  • GPS localization for mobile applications
  • Recording and storage of time-stamped measured values on an SD card
  • Sending messages for configured event classes (diagnostics buffer entries) either as SMS messages or as e-mails.
  • Up to 20 different authorized e-mail addresses or phone numbers can be defined.
  • The rugged hardware enables reliable operation even in harsh environments with an increased temperature range (-40 °C to +70 °C).
  • Automatic buffering of process values to prevent it from getting lost in case of connection failures.
  • Redundancy: TeleControl Server Basic can be operated redundantly to increase the availability of the automation data.
  • Maximum supported storage capacity of the memory card is 32 GB.
Inputs / Outputs
  • Digital Inputs (DI), of which 2 frequency counters (up to 5 kHz)
  • 4 digital outputs (DO)
  • 4 analog inputs (AI)
    • Current / voltage (0/4 … 20 mA, 0 … 10 V, 0 … 5 V)
    • Temperature measurement (Pt1000)
  • 8 additional DI for Modbus RTU or HART Multidrop with extension board
single-img-sixteen
single-img-sixteen
Communication Security
  • Our communication components provide comprehensive security measures such as firewall and VPN via secured TeleControl Server Basic tunnel or SINEMA Remote Connect VPN tunnel.
  • Data is sent through an OpenVPN tunnel or a secure tunnel of the TeleControl Server Basic.
  • E-mail messages can be encrypted (support of STARTTLS).
  • FTP uploads can be performed encrypted via SSL with FTPS.
